VAN PLYWOOD SHELVING PACKAGE
Designed to fit the offside of Transporter vehicles only

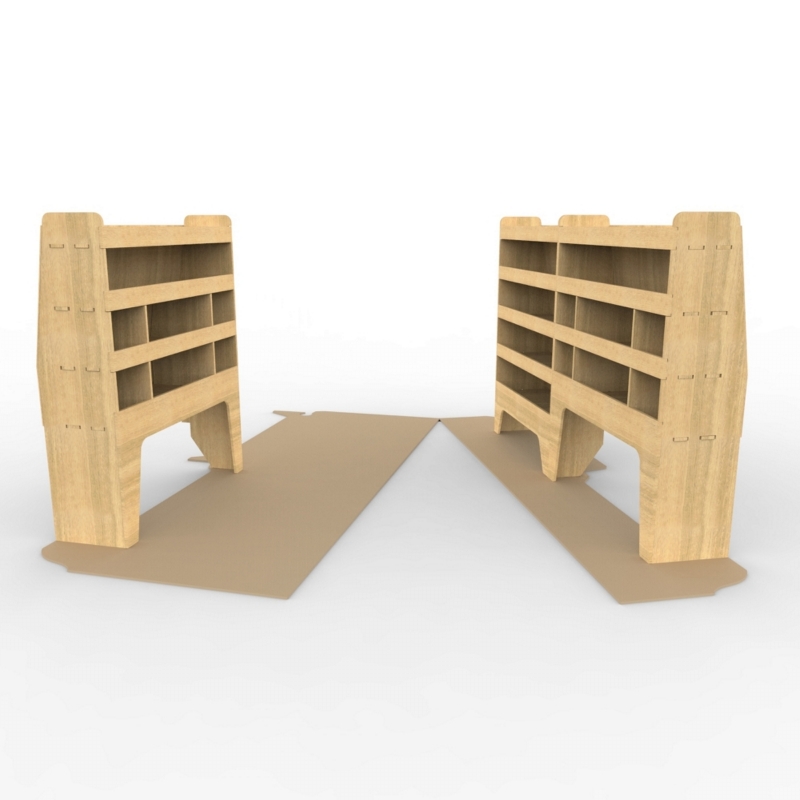

Three separate units are supplied which can be positioned in your van to provide maximum storage using both side of the van. 2 units can be screwed together to form one large unit, the other unit can be used on the opposite side of the van.
The dimensions of each unit is as follows.
RACK WR39 - Unit has height of 1203mm x 974mm wide and depth at the base of 370mm, comprises of 4 shelves, 2 of the shelves are divided into small pigeon hole compartments. Comes with back panel supplied so will work in vans even if they haven't been plylined.
CNC cut with Interlocking shelves and mortice and tenon joints throughout for maximum strength and rigidity, constructed from 12mm ply. Retaining lip to all compartments, much less rattles than steel shelving when on the move.
These units are supplies flat packed will full assembly instructions and due to mortice and tenon joint design they only take 15 minutes to assemble. They can be assembled to fit on either the drivers side or passenger side of the van.
Shelf sizes are as follows starting from the top:
Shelf 1 - 950mm wide x 231mm deep
Shelf 2 - 950mm wide x 265mm deep x 202mm high
Shelf 3 - 950mm wide x 370mm deep 199mm high, Middle compartment 500mm wide. Remaining compartments 212mm wide.
Shelf 4 - As per shelf 3
Clearance from floor to underside of bottom shelf 444mm high
RACK WR37 - Unit has height of 1203mm x 853mm wide and depth at the base of 308mm, comprises of 5 shelves. Comes with back panel supplied so will work in vans even if they haven't been ply lined.
CNC cut with Interlocking shelves and mortise and tenon joints throughout for maximum strength and rigidity, constructed from 12mm ply. Retaining lip to all compartments, much less rattles than steel shelving when on the move.
These units are supplies flat packed will full assembly instructions and due to mortise and tenon joint design they only take 15 minutes to assemble. These are intended to be fitted on the drivers side of the van (not over the wheel arch
Shelf sizes are as follows starting from the top:
Shelf 1 ( Top ) - 829mm wide x 245mm deep
Shelf 2 - 829mm wide x 250mm deep x 200mm high
Shelf 3 - 829mm wide x 308mm deep x 200mm high
Shelf 4 - 829mm wide x 308mm deep x 200mm high
Shelf 5 - 829mm wide x 308mm deep x 200mm high
Clearance from floor to underside of bottom shelf 229mm high.
